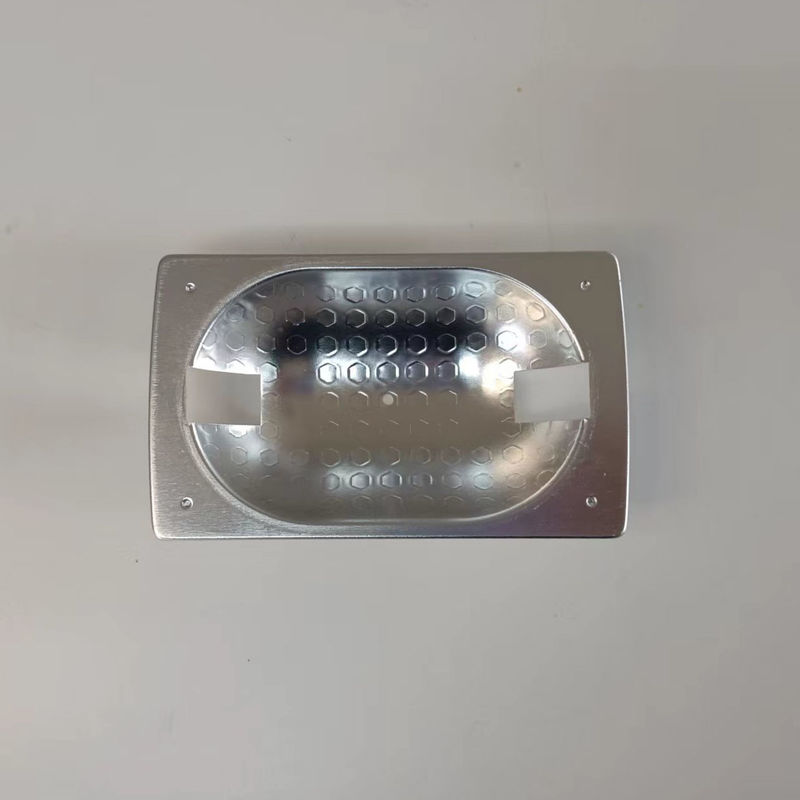

Free Cad Deep Drawing Stamping Parts , Deep Draw Sheet Metal Fabrication

Free design cad drawing sheet metal fabrication stamping deep drawing parts

Turn the flat type batching or process piece into an open hollow piece, or further change the shape of the open hollow process piece into an open hollow piece.

Features of deep drawing parts:

1. The metal is easy to harden after repeated stretching, the flatness is not guaranteed, and it is softened by vacuum annealing
2. There are arcs in stretching, and right angles cannot be stretched
3. Stretch tolerance: dimension related: R angle tolerance: R+1-2
   1-100mm tolerance +-0.2mm
   100-200mm tolerance +-0.4mm
   200-300mm tolerance +-0.5mm

Application of deep drawing parts:

1. Drawing molds can be used in a variety of different industries, such as automobile manufacturing, construction, aerospace and so on. In automotive manufacturing, drawing dies are commonly used to produce metal products such as body and engine parts.

2. In the construction industry, drawing molds can be used to make building materials such as metal roofs and siding. In the aerospace field, tensile molds can be used to make structural components for aircraft and rockets. In short, the drawing die is a very important tool to help manufacturers make a wide variety of metal products.

Product attribute:

Company profile:

Cangzhou Zonpe Metal Products Co., Ltd, has been successfully running for more than 20 years. Over these years, we have been dedicated to the production of the metal fabrication parts. Zonpe's executive leadership are all from metal fabrication experts, who ensures a high quality products to all customers.
Our company is located in the metal product on base in North China. It covers an area of more than 10000 square meters. Our main products are: sheet metal fabrication, metal stamping parts, deep drawing parts, die casting parts, CNC machining partsand metal brackets.

Owing to the unique management and theability on product-developing, we have placed ourselves in a leading position amid thecompetitors in the same field. Our products have won great approve from our customers for its precise workmanship.

Plant equipment:

Customer visit:

Field packing:

Most customers would wonder, how you can ensure our parts produced correctly.

Our customized bussiness scope is from the simple flat cutting to precision metal stamping, we can follow up customer's request use different technology(welding and riveting) to assemble these component and then do surface treatment (zinc plated,anodized, powder coating. electrophoresis,screen ect). Our products numerous apply to the auto parts components, building,plumbing electrical,electromechanical area,furniture ect. ,also numerous export to North America. Europe, Oceania, Mid East, Southeast Asian,Japan and South Korea.
If you need to make metal parts, please feel free to send me your drawings.

Thank you.
